CNC SECTION
CAD/CAM & CNC: Revolutionizing Manufacturing
CAD (Computer-Aided Design): The creation of digital models of physical objects
The Role of CAD - Faster design iterations, reduced errors, and visualization.
CWISS uses CAD software tools – AutoCAD & SolidWorks
CAM (Computer-Aided Manufacturing): The use of software to control machines and automate manufacturing The Role of CAM - Automated toolpath generation, improved precision, and reduced lead times CWISS uses CAM software tools – Autodesk Power Mill & Master CAM
AutoCAD
CAD Software
Industry-standard computer-aided design (CAD) software for precise, technical drawings.
Autodesk Power Mill
CAM Software
Advanced CAM software for precision machining and CNC programming.
SolidWorks
CAD Software
3D CAD software for designing, simulating, and analyzing mechanical structures.

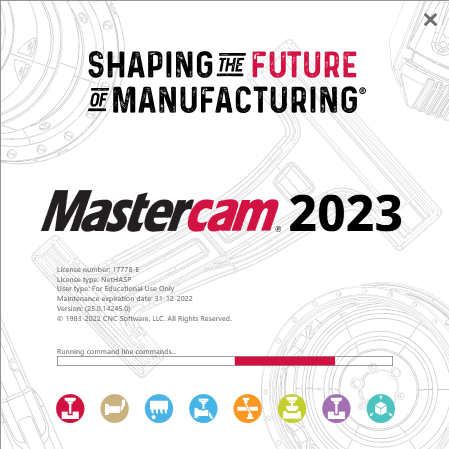

Master CAM
CAM Software
CAM software for precision machining, toolpath generation, and modeling.
CNC Machine (Computer Numerical Control Machine)
CNC machining is a manufacturing process that utilizes computerized control systems and machine tools to remove material from a work piece to create custom-designed parts and components.
The Roll of CNC Machine - This technology allows for precise and automated control of machining operations, resulting in highly accurate and consistent output.

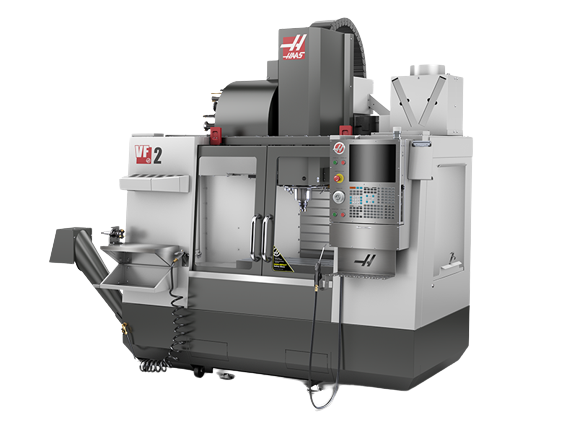

4-AXIS CNC VMC
Model Name : VF-2 / MAKE: HAAS
MACHINE SPECIFICATIONS
TRAVELS:
X Axis: 30.0 in 762 mm
Y Axis: 16.0 in 406 mm
Z Axis: 20.0 in508 mm
Spindle Nose to Table: (~ max)24.0 in610 mm
Spindle Nose to Table: (~ min)4.0 in102 mm
SPINDLE:
Max Rating: 30.0 hp 22.4 Kw
Max Speed: 8100 rpm
Max Torque: 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System: Inline Direct-Drive
Taper: CT or BT 40Bearing
Lubrication: Air / Oil Injection
Cooling: Liquid Cooled
FEED RATE: Max Cutting 650 ipm16.5 m/min
Rapids on X 1000 ipm25.4 m/min
Rapids on Y 1000 ipm25.4 m/min
Rapids on Z 1000 ipm25.4 m/min
TABLE: Length: 36.0 in 914 mm Width: 14.0 in 356 mm
ELECTRICAL SPECIFICATIONS:
Drive System: Inline Direct-Drive
Input AC Voltage (3 Phase) – Low: 220 VA
Full Load Amps (3 Phase) – Low: 70 A

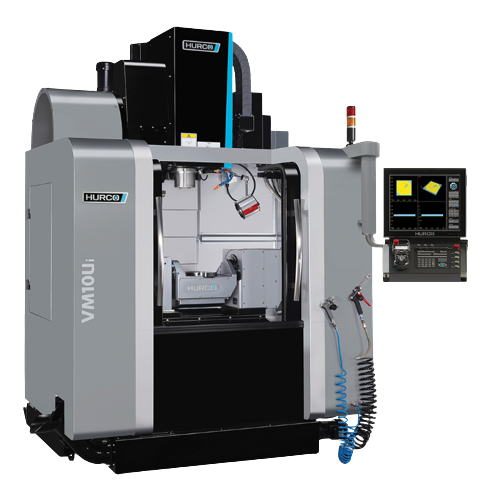

5-AXIS CNC VMC INTEGRATED TRUNNION MACHINING CENTER
Model Name: VM10Ui / MAKE: HURCO
MACHINE SPECIFICATIONS
TRAVELS & CAPACITY:
X, Y, Z Axis Travel: 21 x 16 x 19 in (533 x 406 x 483 mm)
A-Axis Travel : +30°/-110°
C-Axis Travel: 360°
Spindle Nose to Table: Min/ Max 1.4 / 20.4 in (36 / 519 mm) Table Diameter: 7.8 in (198 mm)
SPINDLE:
Max. Spindle Speed: 10000 rpm
Spindle power (peak): 10 hp (7.5 kW)
Spindle torque (peak): 35 ft-lbs @ 1,740 rpm (47.5 Nm @ 1,500 rpm)
TOOL CHANGER:
Tool Type: CAT, BT, DIN 40
Number Of Tools: 20 Max Tool Diameter 3.5 in ( 89 mm)
Max Tool Length: 9.8 in (250 mm)
FEEDRATES:
Rapid Traverse: X,Y,Z Axis 1100 in/min (28 m/min) Max. Programmable Feed rate: 1100 in/min (28 m/min)
Rapid Traverse A, C Axis: 25 rpm
ELECTRICAL :
Power rating / full load KVA 14 KVA

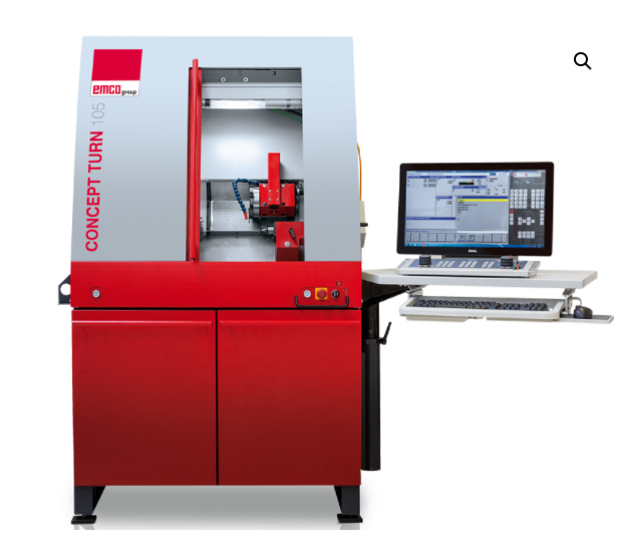

2 AXIS CNC TURNING
MODEL NAME: CONCEPT TURN 105 / MAKE: EMCO
MACHINE SPECIFICATIONS
Work area:
Travel in X/Y/Z: 55 / – / 172 mm
Bar diameter: 18 mm
Max. turning diameter: 75 mm
Max. part length with tailstock: 121 mm
Swing over bed: 180 mm
Tool cross-section for outer machining: 12 x 12 mm
Tool cross-section for inner machining: Ø 16
Rapid motion speeds in X/Y/Z: 5 m/min
Work feed X/Y/Z: 0-5 m/min
Feed force in X/Y/Z: 2000 N
Main spindle;
Max. speed: 4000 rpm
Spindle nose: EMCO
Max. drive power: 1,9 kW
Max. torque: 14 Nm
Tailstock:
Quill travel: 120 mm
Tool turret:
Number of tools: 8
General data:
Dimensions (LxWxH): 1135 x 1100 x 1030 mm
Machine weight: 350 kg

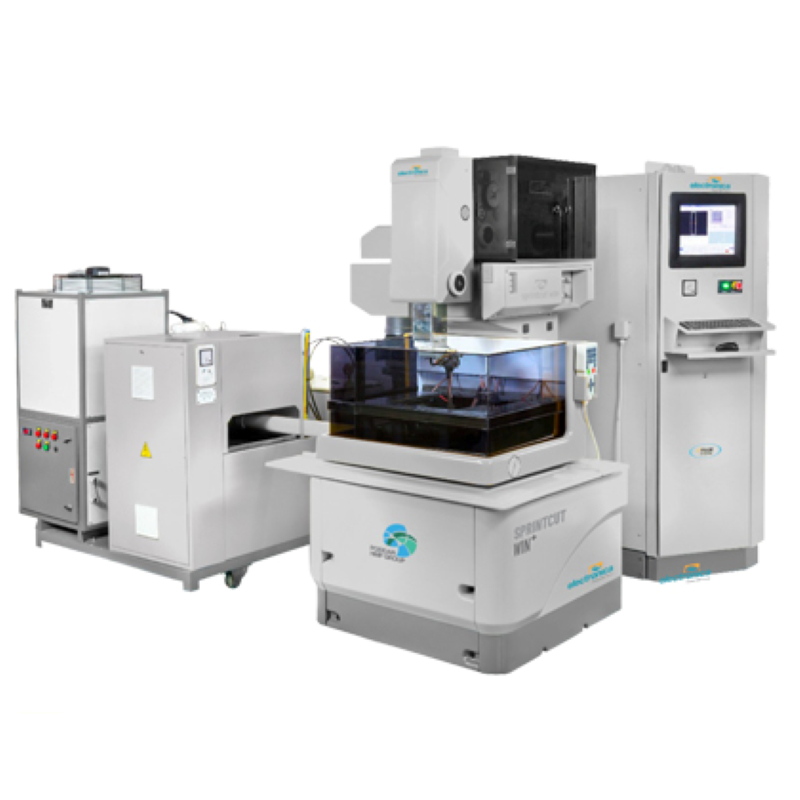

CNC WIRE CUT EDM
Model Name : SPINCUT / MAKE: ELECTRONICA
MACHINE SPECIFICATIONS
Machine Tool
Main axes traverse (X, Y): 300 x 400 mm
Aux. axes traverse (u, v): 80 x 80 mm
Table size: 440 x 650 mm
Max. taper angle: ± 30˚/50 mm
Max. work piece height: 250 mm
Max. work piece weight: 300 kg
Resolution: 0.0005 mm
Max. JOG speed: 900 mm/min.
Max. wire spool capacity: 6 kg (up to DIN 160 / P5)
Wire electrode diameter: 0.25 mm (std.) 0.15, 0.20 mm (opt.)
Pulse Generator
Pulse peak voltage: 1step
CNC controller: Turbo
Controlled axes: X, Y, u, v Simultaneous.
Interpolation: Linear & circular
Least input increment: 0.001 mm
Least command input (X, Y, u, v): 0.0005 mm
Max. programmable dim (X, Y, u, v): ± 99999.999 mm
Input power supply: “3 Phase, AC, 415 V, 50Hz
Connected load: 10 KVA
Average power consumption: 6 to 7 KVA

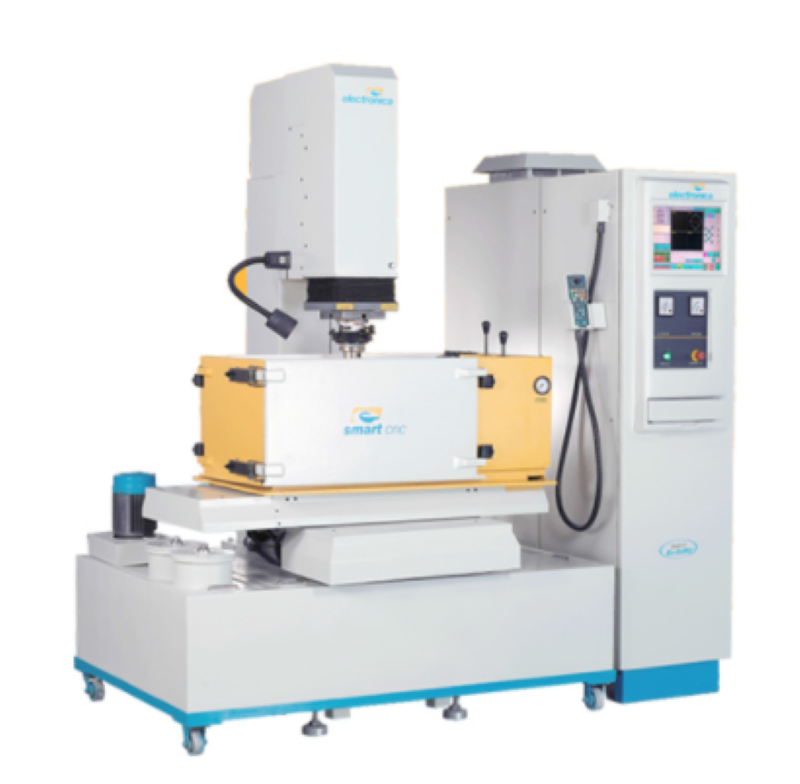

CNC DIE SINK EDM
Model Name : Smart CNC / MAKE: ELECTRONICA
MACHINE SPECIFICATIONS
Machine Tools
Work tank Internal dimension (WxDxH): 800 x500x350 mm
Work table dimension: 550x350mm
Traverse (X,Y,Z): 300,200,500mm
Maximum job weight: 300kg
Maximum electrode weight (with accessories): 70 kg
Maximum job height: 250 mm
Dielectric unit
Dielectric capacity: 400 Litres
Filter element: 10 μ paper cartridge 2 nos.
Pulse Generator
Pulse Generator Type: MOSFET
Maximum working current: 50 A
Max. MRR ( Cu-St): 350 mm3 /min
Max. MRR (Gr-St) (GR-1): 500 mm3 /min
Best surface finish ( Cu-St): 0.3uRa
Min electrode wear ( Cu-St & Gr-St ): Greater than 0.2%
Power supply: 3 phase, 415 V* AC, 50 Hz
Connected load: 6kVA
